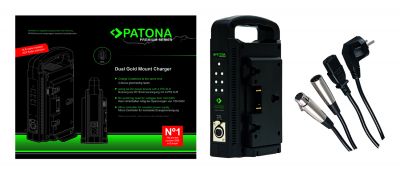

PATONA Premium Gold Mount Dual Charger for Panasonic AN-190W BL-BP150 BP-150S with 4-Pin XLR Cable

With the PATONA Dual Gold Mount Charger for Panasonic, two batteries can be charged quickly, simultaneously and independently of each other. It does not matter whether the two batteries have the same capacity.
In addition, the charger has a DC XLR output that can be used to charge and operate compatible third-party devices (camcorders, cameras). When the XLR output is used, no batteries can be charged at the same time as the gold mount connectors.
The charger can also be used as a backup power supply without an AC mains connection. The XLR connector can be used to power a third-party device when charged batteries are inserted.
The integrated, microcontroller-controlled charging technology automatically detects the required voltage of the inserted battery and prevents overcharging or overheating.
The charger has a wing stand to maintain a compact design and still ensure a secure stand.
The Gold Mount System used for the batteries is a standard that will probably be used in more and more cameras and camcorders in the next few years. This charger is compatible with all batteries based on the  Gold Mount System.
Important information such as connected AC power supply, inserted batteries and charging or discharging connected batteries is displayed with the help of multi-colored LEDs.

Technical data:

• Input: AC 100V-240V 50/60Hz 2A (max)
• Output: DC 16.5V / 4.5A max 75W (4 pin XLR connector)
• Output: Gold Mount Connector 16.8V / 3A x1 | 16.8V /2A x2
• Scope of delivery: 1x Dual  Gold Mount Charger | 1x Power Cable | 1x 3m 4 Pin XLR Cable | 1x QR code for instructions

Suitable for the following camera types:

AJA CION
Camera Body

Anton Bauer
Video Camera Battery

ARRI
Alexa Minicamera

Blackmagic
Design URSA camera

Canon
EOS C100/C300/C500

Cine Alta Cameras
Ursa, Ursa mini

Gold Mount
Dionic Series

JVC
GY HM850E, HM890E, GY-HM850E, GY-HM890E

Panasonic
AG HPX393, HPX600MC, AG-HPX393, AG-HPX600MC

Sony
PMW-EX3, Sony F5 F55

Suitable for the following battery models:

JVC AN-190W, BL-BP150, BP-150S, BP-150W, BP-90W
Panasonic AN-190W, BL-BP150, BP-150S, BP-150W, BP-90W
Dionic 90, 160

The illustrations are sample images, the delivered article may vary. A product of the quality brand PATONA is offered.
